Anti acid floor tiles for sulfuric acid plant and smelting factory

FOB Reference Price:Get Latest Price
US $0.5-2.5 / Pieces | 2000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangxi, China (Mainland)
Brand Name:
Lianfa
Function:
Acid Resistance Bricks
color:
gray
usage:
anticorrosion
acid resistant:
99.8%
water absorption:
0.55
alumina content:
17-23%
bulk density:
2.4g/cm3
standard size:
230*115*65/50/40/30mm
Supply Ability
Supply Ability:
100000 Ton/Tons per Year
Packaging & Delivery
Packaging Details
wooden case or following customer's requirement.
Port
shanghai port




Product Description

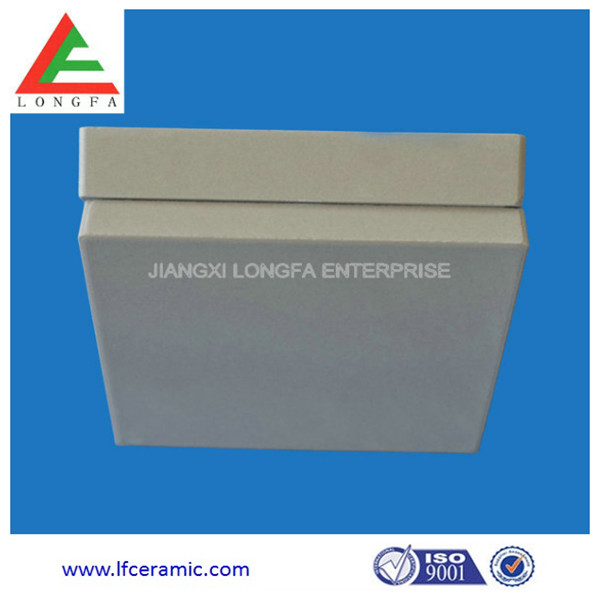

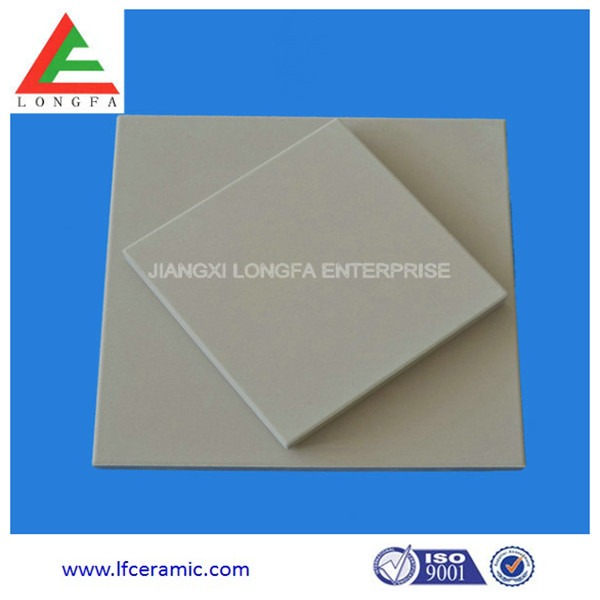

Picture of anti acid floor tile















Our Services



Engineering service from Longfa Enterprise(construction experience in Papua New Guinea)








Company Information

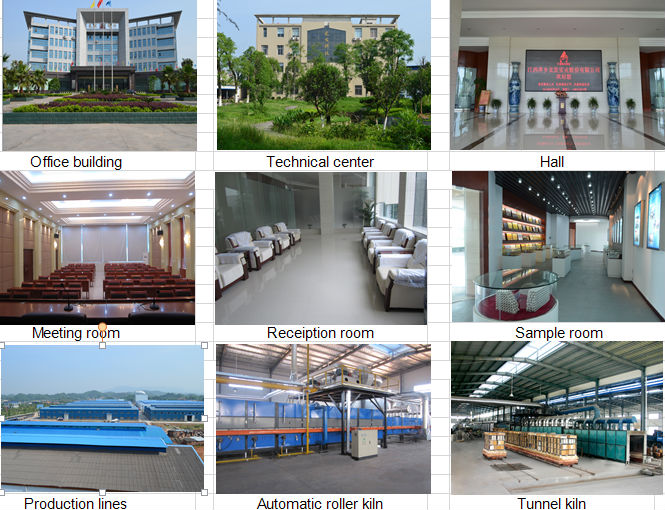

Information about our factory.



Jiangxi PingXiang Longfa Enterprise Co.,LTD. Founded in 2001, the registered capital of 100 million RMB.

Our company covers 260,000 square meters,and has 880 employees at present.

Compared with other supplier of ceramic in China our company have the 3”the only ”as bellows,

1.-The only company in China to won the “well-known trademark of industrial ceramic field so far.

2.-The only company in Pingxiang city that deserves the name of “high and new tech enterprise”given by Chinese science and technology bureau.

3.-The only company in China that build the provincial level testing lab and technology center.

And the 5”the first” as bellows,

1.-The first company that contributes more than 3 clauses of occupation(field) standard’s to “science and technology bureau” in China.

2.-The first company that have more than 8 patents in China of industrial ceramic.

3.-The first company that reaches to annual production of 100,000tons and 80,000cubic meters.

4.-The first company that have more than 10 sets of kiln for ceramic.

5.- Annual sales amount of 34 millions USD (200millions CNY) in China of industrial ceramic field.





factory





6





 Acid resistant ceramic tile application:



1.Acid resistant ceramic tile with very excellent acid/alkali resistance, high temperature resistance, and they can withstand violent heat and cold. We also have heat & acids resistant grade.



2.Acid resistant ceramic tile is  used as flooringlining in many kinds of industries concerning sulfuric acid, such as,chemical fertilizer industry,papermaking industry,sugar production,brewage production and so on.





Installation of acid resistant ceramic tile :



  Using oxalic acid to wash the surface of concrete and tiles, make it neutralization of acid and alkali.

  Usually, we use colophony, araldite, acid-proof cement to install the tiles.



  The slot between the tiles is usually 8 -10mm . It's better to make the slot thickness is same as the thickness as the tile thickness to prevent from chemical leakage.



  Using the oxalic acid to wash the surface of the floor after the installation.





Main specification of acid resistant ceramic tile :

1.Acid resistant ceramic tile: 150*150*20/30mm

2.Acid resistant ceramic tile: 150*75*20/30mm

3.Acid resistant ceramic tile: 180*110*20/30mm

4.Acid resistant ceramic tile: 200*200*20/30mm

5.Acid resistant ceramic tile: 300*300*20/30mm







Technical Parameters of acid resistant ceramic tile :

Parameters

Unit

Indexes

Test Standard

Density

g/cm3

2.20-2.40

ASTM

Porosity Rate (Volume percent)

%

9.3-10.5

ASTM

Water Absorption Rate (Weight percent)

%

4.2-4.7

ASTM

Heat Stability

950 -20°C

will not be broken within 30 cycles

DIN

Elasticity Modulus

MPa

2,138

DIN

Compression Strength

MPa

123

DIN

Bending Strength

MPa

≥ 40

DIN

Thermal Conductivity ( 400°C )

w/m.k

1.175

DIN

Thermal Expansion Coefficient
( 1,000°C )

1/°C

3.2 x 10 6

DIN

Thermal Expansion Rate ( 1,000°C )

%

0.31

DIN

Mohs' Hardness Scale

Grade

6.5

DIN

Acid Resistance

%

>99.8

DIN

Alkali Resistance

%

>93



Abrasion

g/cm2

0.06

JC260-80

Length Error

%

≤ ±1



Bend Error

%

<0.5
